Bright Orange CdSe Based Quantum Dots (Magnetic)

50~100 nm Core CdSe/CdS/ZnS QDs = 5~7 nm
Shell coating with magnetic Fe3O4 NPs = ~5 nm

CdSe Based Quantum Dots (Magnetic)are specifically designed and developed to meet the requirements of Point-of-Care bioassays, imaging, drug-delivery, displayand sensorindustry for down converting materials.

Price :$1170

Ready to ship in 7 business days

Description

CdSe Based Quantum Dots (Magnetic)are specifically designed and developed to meet the requirements of Point-of-Care bioassays, imaging, drug-delivery, displayand sensorindustry for down converting materials. CdSe Quantum Dots (Magnetic)have unique multimodal functionality with magnetic, photoluminescence and chemical along with high reliability. The material has free -COOH and -NH2 functionality readily available for customized conjugation/linking with desired molecules, drugs, proteins or antibodies. The CdSe Quantum Dots (Magnetic)have high water solubility and compatible with physiological saline or PBS.

Application Areas : Imaging, drug-delivery, display and sensor industry, solar cells
Shipping : Ready to ship in 7 business days
Storage : +4 °C (6-12 months)
Packaging : 5 mg, 10 mg, 20 mg, 50 mg

Properties

Bright orange luminescent under UV365
Magnetic
Total Size: 50~100 nm (Core CdSe/CdS/ZnS QDs = ~7 nm; Shell coating with magnetic Fe3O4 NPs = ~5 nm)
Chemical reactivity: -COOH, -NH2
Excitation wavelength: 365 nm
Emission wavelength: 588 nm
Appearance: Colorless to light brown (normal light), bright orange under UV356 light
Nanocrystals suspension solvent: water

Quality Control

Emission and Absorption Spectra of MQDs-Bright Orange

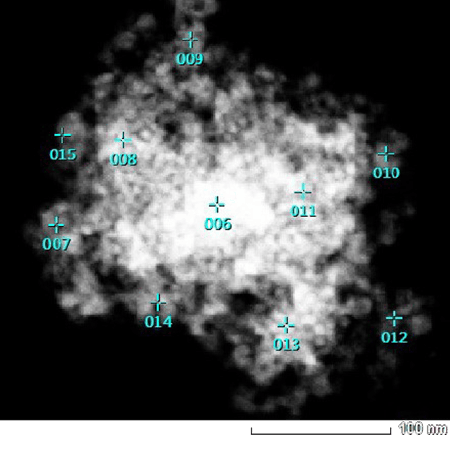

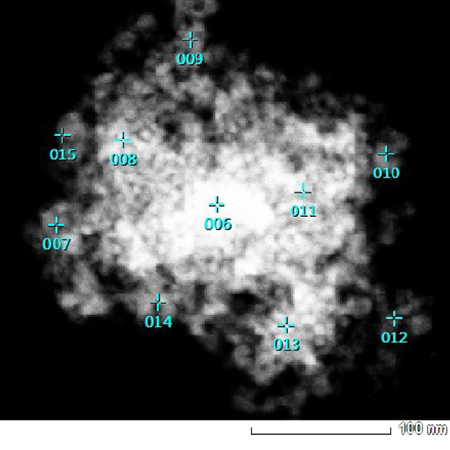

TEM image of MQDs-bright orange nanoparticle and the points marked are the regions used for elemental mapping.

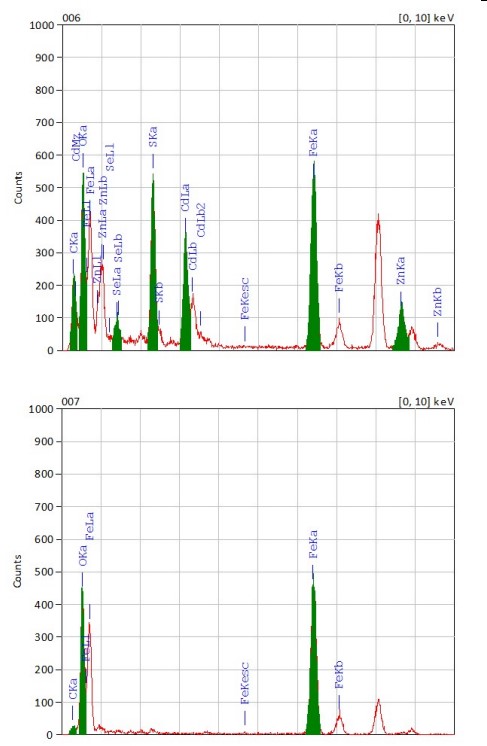

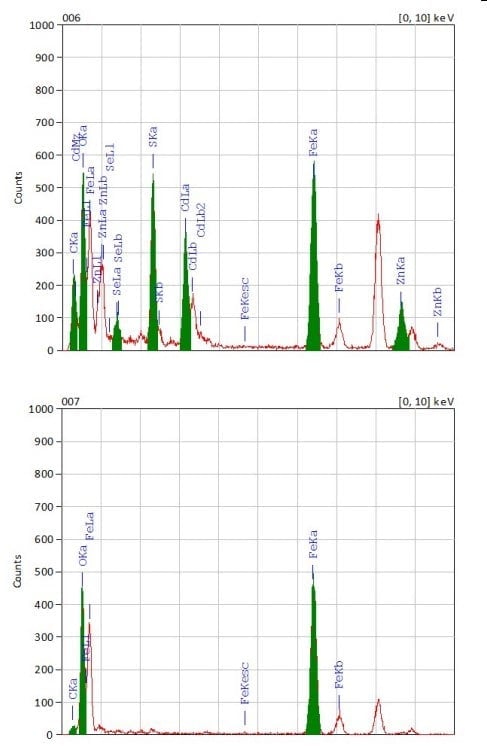

Elemental maps showing specific elements at core [006] and shell [007] regions.

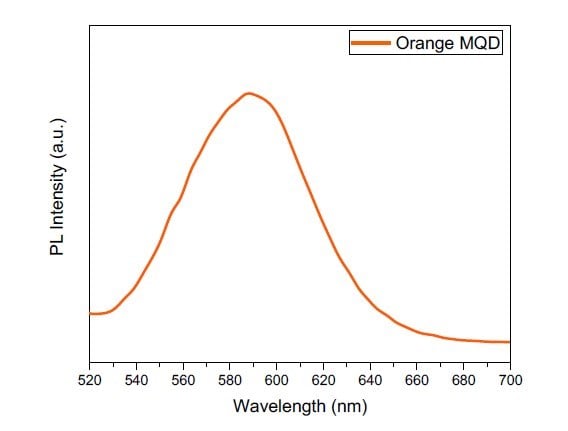

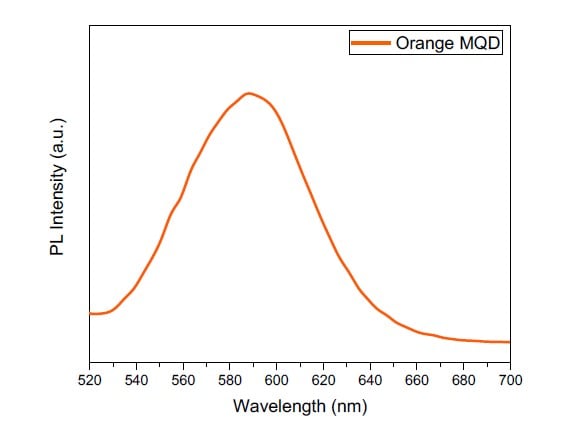

Emission spectra of magnetic quantum dots (MQDs) showing maximum emission at 588 nm.

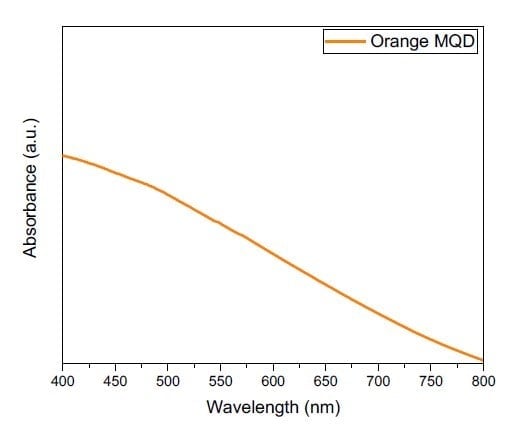

Absorption spectra of magnetic quantum dots (MQDs).

Safety Data Sheet

References

CdSe/CdS/ZnS nanocrystals decorated with Fe3O4 nanoparticles for pointof- care optomagnetic detection of cancer biomarker in serum

Early diagnosis of a progressive cancer disease is currently limited due to lack of adequate point-of-care (PoC) diagnostic tools. PoC diagnosis enables detecting early signs of a disease and ave way to disease prevention.Here, we developed an immuno-optomagnetic quantum dots based PoC assay for early detection of a cancer biomarker, human epidermal growth factor receptor-2 (hErbB2) protein in serum. This assay utilizes immunooptomagnetic quantum dots (MQDs-Ab2) nanoarchitectures with unique orientation comprised of core CdSe/ CdS/ZnS QD nanocrystals surrounded by layers of magnetic Fe3O4 nanoparticles (MNPs) and a bioactivated borofloat PoC-chip (Ab1). The MQDs-Ab2 and the PoC-chips were designed to bind same hErbB2 analyte,.. Read More
